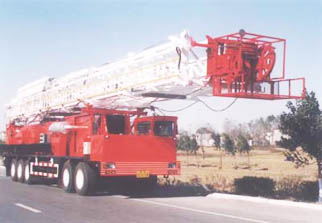

Model |
ZJ15/1350CZ |
|
Drilling Depth (ft) (41/2″DP) |
5000 |
|
Workover Depth (ft) (31/2″DP) |
14500 |
|
Max Hook Load (lbf) |
303500 |
|
Hook speed (ft/s) |
0.65～4.59 |
|
Mast height (ft) |
108 |
|
Mast type |
Mast |
|
Engine power (hp) |
540.4 |
|
Hydraulic transmission box |
S5610HR/TH35 |
|
Drive ways |
Hydraulic + mechanical |
|
Traveling system |
5×4 |
|
Drilling line diameter (in) |
1” |
|
Hook block |
YG110 |
|
Swivel |
SL135 |
|
Rotary table |
ZP175 |
|
Chassis |
XD50/10×8 |
|
Approaching /Departure angle |
30°/20° |
|
Min. ground clearance (in) |
12 |
|
Max. gradient ability |
26% |
|
Min. turning diameter (ft) |
98 |
|
Overall dimension (ft) |
62×9×14 |
|
Main unit mass (lbs) |
110000 |
|
Mass of accessories (lbs) |
～44000 |
